Le migliori offerte per 5-Way 4Pin CPU Cooler Case PWM Cooling Fan Power Cable Hub Splitter Adapter sono su ✓ Confronta prezzi e caratteristiche di prodotti nuovi e usati ✓ Molti articoli con consegna gratis!
17.53
33.10
-47%
100.00-5.00
2.01-2.00
50.00-2.00
2500.00-250.00
Articolo n.: 21477651
Colore
1,99€ Consegna Voghion
Arriva in 18~30 giorni lavorativi
Buyer Protection
Specifiche dell'articolo
Caratteristiche
Monocromatico, RGB, guscio di armatura
Con ventilatore
Si No
Interfaccia del disco rigido
Interfaccia SATA,Interfaccia Sas
Capacità del disco rigido
10 TB, 12 TB e oltre, 1 TB
Tipo di memoria
Gddr6X,Hbm,Hbm2
Capacità di memoria
24Gb,12Gb,16Gb
Velocità del disco rigido
5400 giri al minuto, 5700 giri al minuto, 5900 giri al minuto
Tipo di raffreddamento
Raffreddamento ad acqua, raffreddamento ad alette, tre ventole
Interfaccia della CPU
Intel Lga1200,Intel Lga2066,Intel1151 (nona generazione)
Applicazione
Memoria del notebook, memoria del desktop, memoria del server
Tipo di disco rigido
Disco rigido desktop, disco rigido del server, disco rigido di sorveglianza
Caratteristiche
No, supporta RGB
Capacità di memoria
64 Gb e superiori, 32 Gb, 8 Gb
Interfaccia grafica
Hdmi, Dp, Dvi
Numero di core
Otto core, ventiquattro core, sei core
Tecnologia di processo
7 Nm, 12 Nm, 14 Nm
Scheda grafica della CPU
Supporto, non supporto
Descrizione dell'articolo da parte del venditore
Specifications:
It is designed for enthusiasts with need for controlling numerous system fans.
This cable hub is capable of expanding one motherboard PWM fan header to support up to five fans.
PWM function and speed control can satisfy your control needs.
This hub is compatible with 3-pin/4-pin fans (due to 3 pins is without PWM controller, 3-pin fans would run in full speed.)
The cable management is supported. It is self-stick for easy installation and has options to hide the PCB itself.
Since only one RPM signal can be read by one motherboard connector, only the CPU fan channel of the PWM splitter carries an RPM signal.
Tips:
1. Only the fan on the CPU fan channel is used for monitoring.
2. All connected fans are following the same PWM signal. Speed control is the same for all fans when using fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc..
3. PWM capable connectors must be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default.
4. Please carefully consult your motherboard documentation in this respect.
5. This is only a fan hub, not a fan speed controller.
6. Only the speed of 4-pin PWM fans can be adjusted by fan controller software.
7. The 3-pin fan would run in full speed and can not be adjusted when connected.

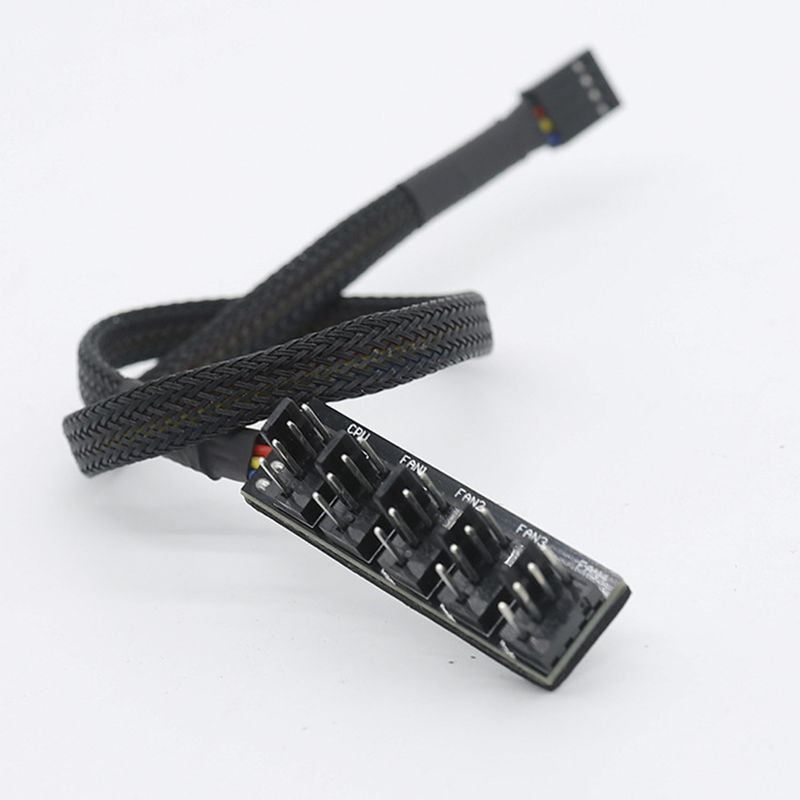

Item Name: CPU Power Cable Hub
Material: PVC, Tinned Copper
Expansion Number: 5
Interface A: 1 x TX4 4pin Female
Interface B: 1 x TX4 4pin Male (for CPU Fan), 4 x TX4 4pin Male (Chassis Fan)
Wire Standard: 1007 22AWG
Conductor Specification: 17 x 0.12TS
Wire Diameter: OD 1.4mm x 4
Voltage: DC 12V
Features: Portable, Durable, Easy to Use
Hub Size: 5cm x 1.8cm x 1.2cm/1.97" x 0.71" x 0.47" (Approx.)
Cable Length: 40cm/15.75" (Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:
1 x CPU Power Cable Hub
